Discover the
Freedom of EDS-GeX
Freedom of EDS-GeX
Unlock the power of the latest
WheelTop-EDS GeX
Groupset: a cutting-edge 3-14 speed and
wireless
shifting system. Customize your experience with precision and ease, and conquer any terrain with
effortless control.
Customizable Speeds
Fit 1X Bikes
Electronic System
Smart APP
Detachable Damping System
Shake-Fin Design
Infinite Possibilities: Customizable
3-14 Speeds
Choose from our customizable 3 to 14-speed options and fine-tune your gear ratios via the app for a perfect
fit. Tailor the system to your unique riding needs, unlocking endless possibilities for your cycling
adventures.
3 Speed
7 Speed
11 Speed
14 Speed

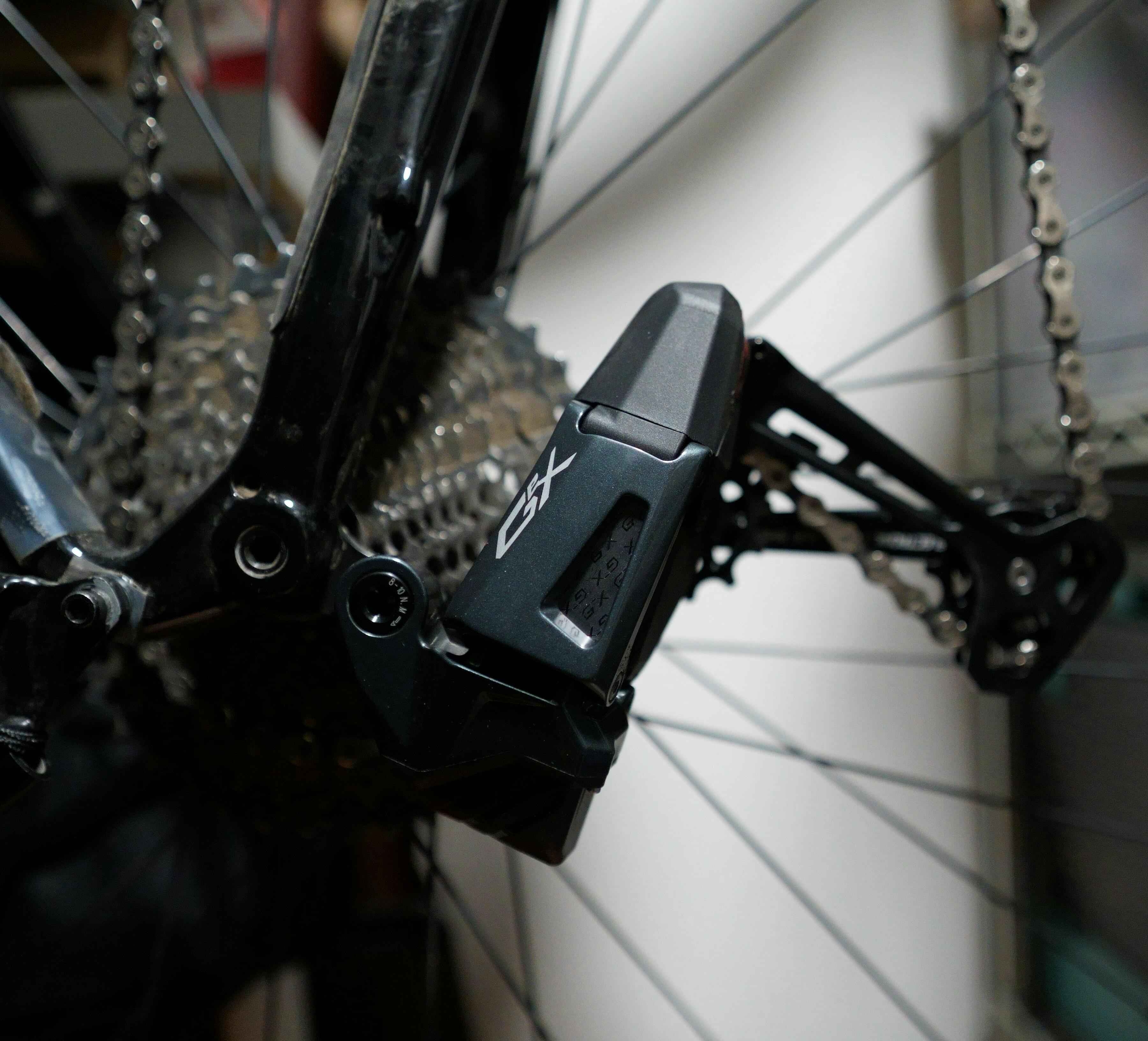

Go Wireless:
Advanced Shifting System
Experience ultimate freedom with our wireless derailleur. Compared to mechanical systems, it offers more precise shifting, effortless installation, and minimal maintenance —free from the hassle of cables.
For more information about the 2x chainring system, please refer to the FAQ
Fit ALL 1X Bikes
The GeX series
is perfectly compatible with other
WheelTop components, such Such as TX's shifter and OX's controller, and we plan to upgrade for TX front derailleur compatibility in the future. Customize and adjust components to meet your specific riding
needs and riding experience.
PS: Paired with our latest integrated caliper
75mm RD+HDB+Aluminum Shifters
93mm RD+HDB+Aluminum Shifters
75mm RD+Cable Brake+Carbon Shifters
93mm RD+Cable Brake+Carbon Shifters
Conquer ALL Terrians
Experience unmatched durability and reliability no matter where your adventures lead you. From winding forest trails to bumpy gravel roads, our product delivers exceptional performance across diverse terrains.
Gravel
Forest
Two Cage Lengths for Perfect Riding Efficiency
Two Cage Lengths ensure a perfect fit for every rider, enhancing comfort and stability. Choose the appropriate length based on your bike’s dimensions to minimize fatigue and improve control, resulting in a more efficient
and enjoyable ride.
75mm Cage (11-46T)
93mm Cage (11-51T)
Damping System for the Best Control
The damping system provides precise shock absorption and enhanced stability. It adapts quickly to road conditions and allows for flexible adjustments by increasing friction. Enjoy greater safety and a smoother, more
controlled riding experience. With our damping system more safety, and more peace of mind.
APP for Smart Riding
The app provides real-time monitoring of remaining battery life and allows you to fine-tune the settings for each gear ratio. Customize your riding experience with tailored settings to ensure optimal performance and alignment
with individual preferences.
Shark-fin Design for Better Functionality
Lightweight aluminum alloy for durability. The shark-fin and streamlined fairing design enhances performance while maintaining a sleek, aesthetic appeal, and it boosts riding speed by reducing air resistance.
IP67 Waterproof and Extended Battery Life
With IP67 rating, the system performs reliably in all weather conditions. The battery provides approximately
20,000 shifts per charge and can be recharged up to 800 times for rear derailleur, minimizing the need for
frequent recharges and extending your riding pleasure.
Specifications
Rear Derailleur (RD)
Speeds Compatibility
3 - 14s
Minimum Cassette
10 - 11T
Maximum Cassette
75mm RD: 46T 93mm RD: 51T
Total Range of Gear Change
75mm RD: 34T 93mm RD: 40T
Weight
75mm RD:368 ± 2g
93mm RD:375 ± 2g
93mm RD:375 ± 2g
Battery Capacity
800mAh
Mount Type
Normal RD Hanger, Available with UDH
Waterproof and Dustproof Rating
IP67
Brake Calipers
Brake Fluid
Mineral Oil
Braking
Bilateral Braking
Brake Disc Compatibility
140mm/160mm
Weight
95 ± 5g
Brake Pads Type
Compatible with Shimano L04C, L05A, L04A, BR-RX810, IIPRO-GLYS
Oil Hoses Length
F: 900mm R: 1550 mm
Oil Hoses Type
BH-59

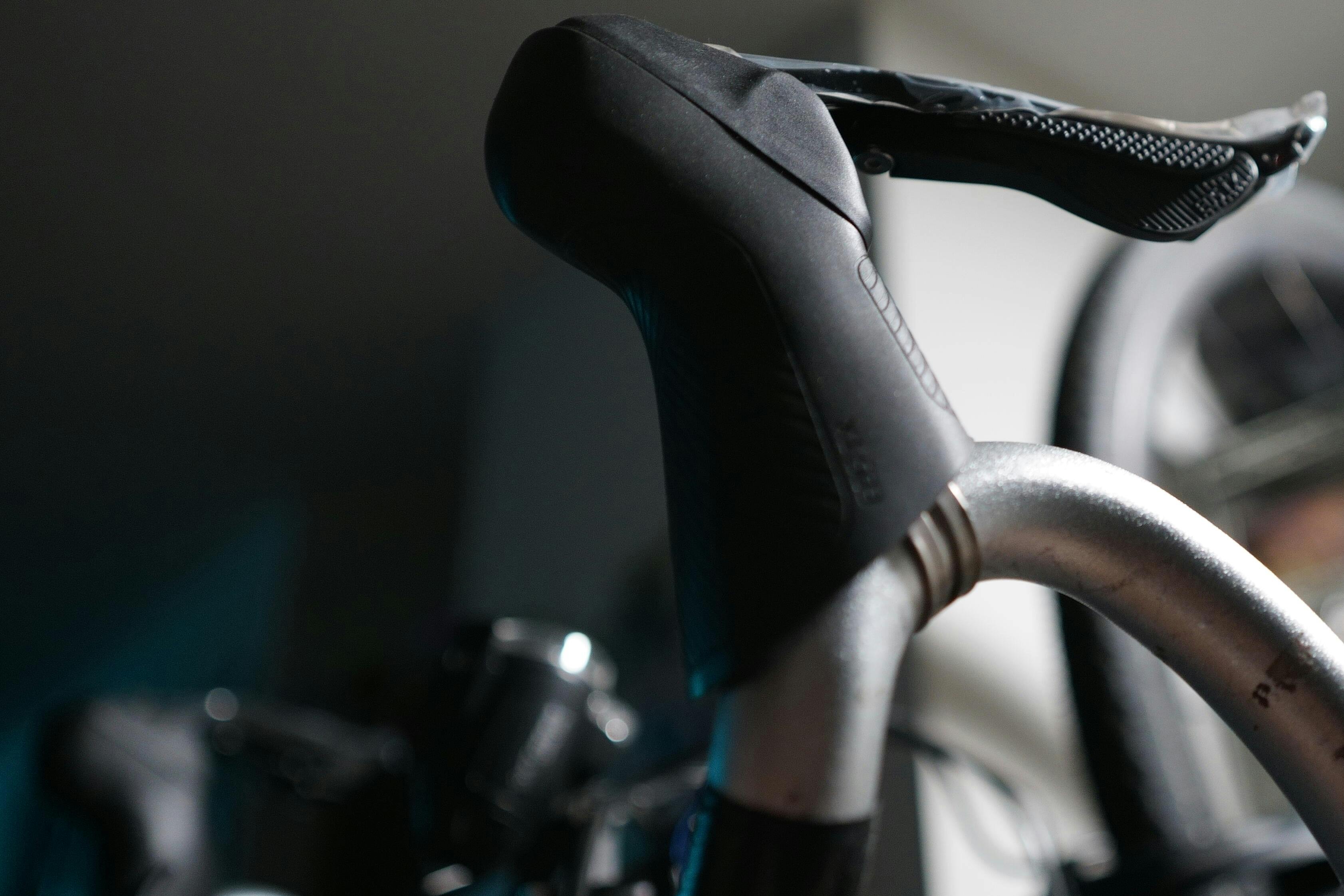

Hand Shifters
Adjustable Range (Only available on hydraulic disc shifters)
8mm
Battery Type
CR 2032
Speed Compatibility
L: 1 / 2 s R: 3 - 14 s
Weight(Cable)
L: 202.3g R: 214.6g
Weight(Hydraulic Disc)
L: 238.4g R: 240.5g
Waterproof and Dustproof Rating
IP65

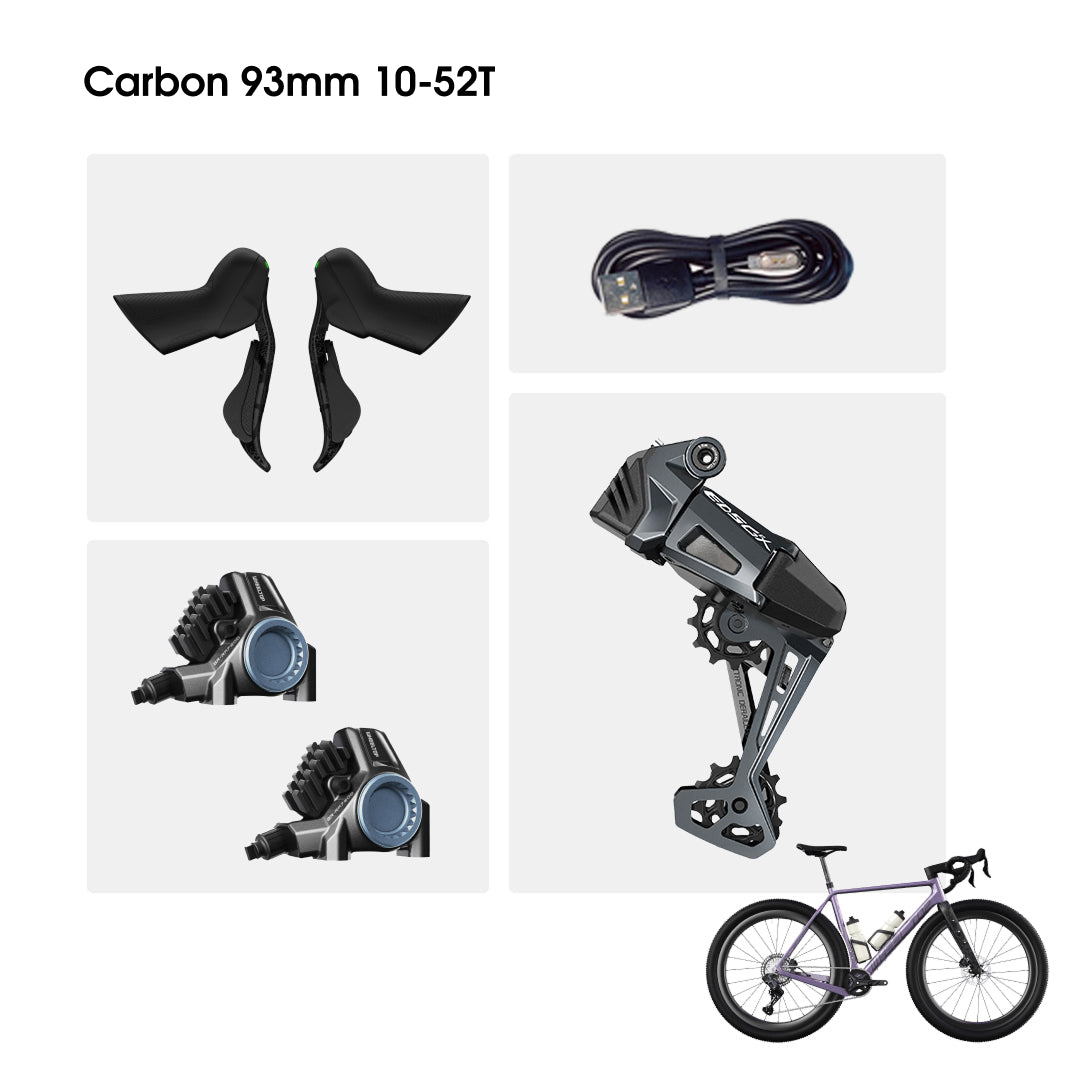

What's in the box
75mm RD+HDB+Aluminum Shifters
93mm RD+HDB+Aluminum Shifters
75mm RD+Cable Brake+Carbon Shifters
93mm RD+Cable Brake+Carbon Shifters
FAQ
Questions about Products
What's the waterproof level?
For EDS-GeX.
RD: IP67.
Shifters: IP65.
How’s the battery life?
RD: 800mAh.
800 times charge cycles.
Can I pair a GeX rear derailleur with MTB shifters or TX front derailleur?
Currently can't. But our product team are working on it.
Do you offer GeX for 2x chainring system?
Currently we only offer GeX for 1x chainring system, the 2x system is still under development.
How to remove the fairing of rear derailleur?
To remove or replace the fairing, please refer to this video: https://drive.google.com/file/d/1Ah6OjmZIrndjHnEGYllqlfzL1Qh_aBm-/view?usp=drive_link
What is the operating temperature of GeX?
-20°C to 60°C(-4°F to 140°F)
Questions about APP
How to connect to the Wheeltop APP?
- As the product is charged, it is set to safe mode during transportation, you need to power up the front and back toggles with the magnetic charging cable after receiving the product, after that it can be used normally.
- Search 'Wheeltop' in Google Play or App Store to get the APP.
- Open the APP and log in, click the "+" at the bottom of the homepage and turn on the Bluetooth of your cell phone, the APP will automatically search for nearby devices.
- EDS TX will be displayed in "Bindable Devices", click to bind.
- After binding, click the Bluetooth icon on the upper right corner, APP will search for the device and connect to it, then you can use the functions normally.
What are the features of the Wheeltop APP?
- Check the remaining battery level
- Code meter, riding record
- Shift mode - front and rear dial cassette number switching, hand shift customized buttons, front and rear dial fine tuning
- cassette speed setting
- Initial calibration of front and rear dials
- Equipment shutdown
- Firmware upgrade
- After-sales application
- Trouble List
- Shift mode switching - casual/race
- Instructions for use
Questions about Service
Do you have any distributors?
- HK: 香港镇洋兄弟单车公司，CHUNGYUNG CYCLE CO.
- Malaysia: Zavinci Cycle Hub (M) Sdn Bhd
- Thailand: Nattapong Bike
- Canada: EZ Bike, DP Motor
- Japan: HODAKA (HODARIKA Co., Ltd.)
...
How can I get after-sale service if I didn’t purchase from the official website.
If you purchase from other channels, the responsibility for the warranty and after-sales service lies with the respective dealers/sellers.
