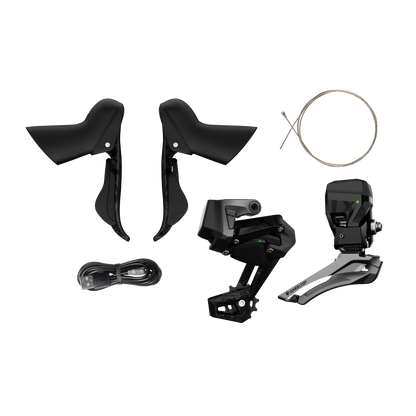

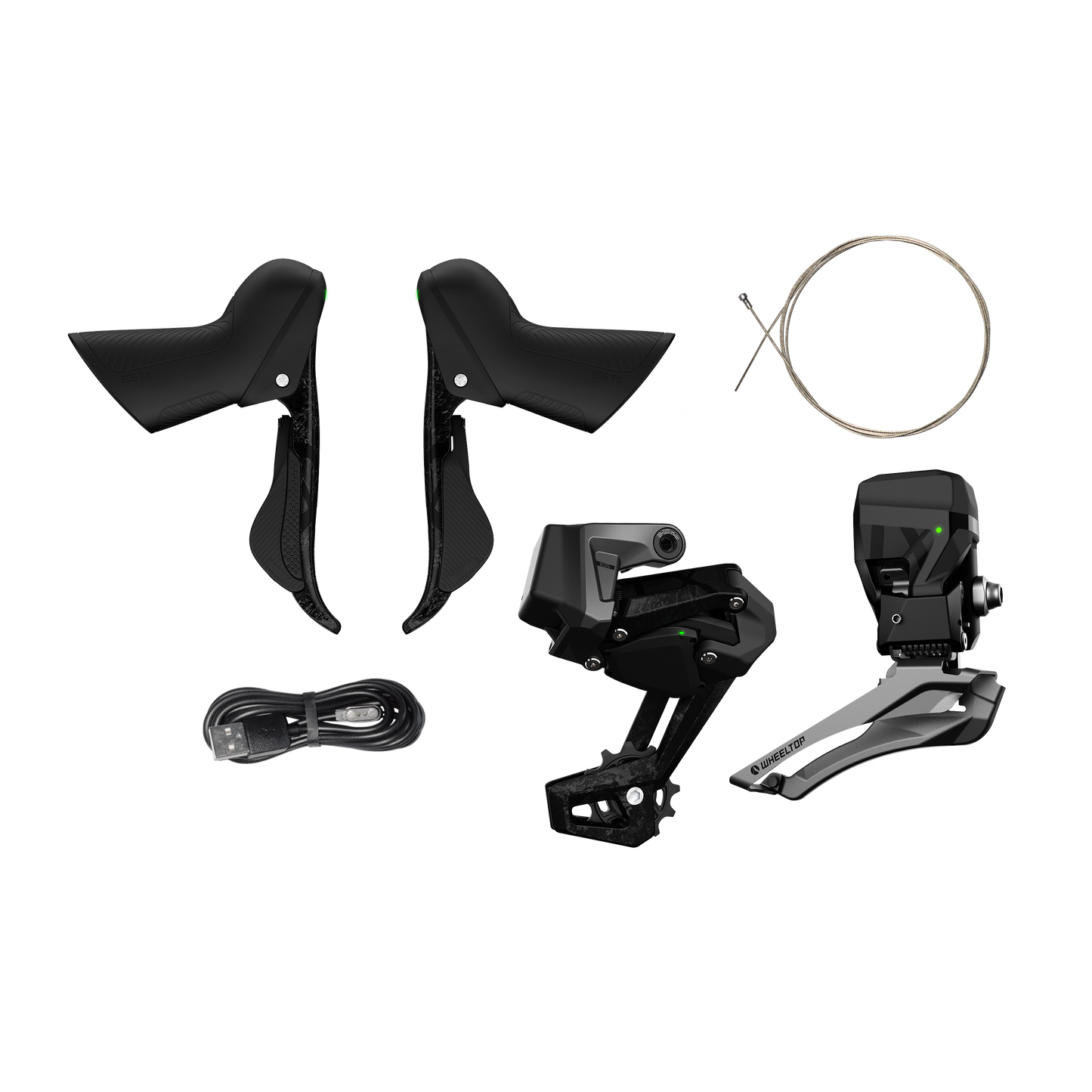

WHEELTOP EDS-TX Wireless Carbon Electronic Shifter/Derailleur (Road Bike)

$599.00 Regular price $799.00
Unit price
per
Stock
Pre-Order Now! 🌟Shipping Begins on June 10th!🎉
Free Shipping
Free Shipping to Contiguous US
Fast 4-Day Delivery

Expected to Be Shipped within 2 Business Days (Pre-order excluded)

14-Day Risk free trial
14-Day Return Policy
2-Year Warranty
1-Year Warranty Protection
PAY
Ways to Pay

7-13 Speeds
3-14 Speeds
Wireless Connection
Wireless Connection
Electronic
Electronic System
Smart APP
Smart APP
Carbon fiber
Long Battery Life
IP67 water proof
IP67 Waterproof
形状结合
Speeds Customizable
You can fine-fune the value of everyspeed through WheelTop app toachieve the most precise and smoothgear shift just for you.
Fine-Tune with Ease Super riding experience
You can fine-fune the value of everyspeed through WheelTop app toachieve the most precise and smoothgear shift just for you.
Wireless Connection
Bluetooth and ANT (Adaptive Network Topology) ensure a stable wireless connection between the controller and derailleurs, offering a responsive, smooth, and precise gear shift. Wireless design makes installation easier and offers an untethered ride.
路径
路径
Front Derailleur-border
Rear Derailleur-border
line 01
line 02

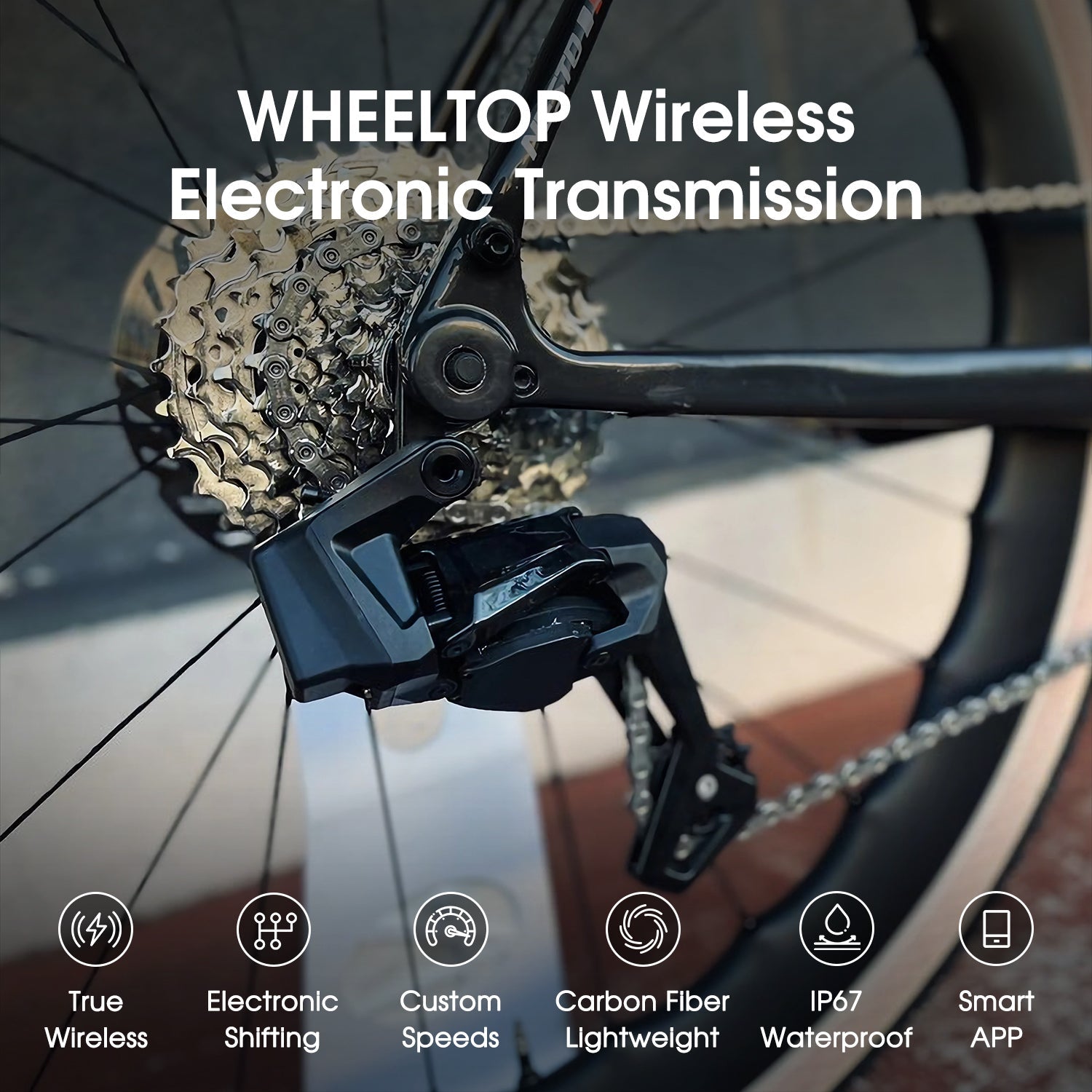

Electronic Derailleur: Ride Effectively
Compared to a mechanical deraileur, the Wheeltop Electronic Deraileur allows you to switch speeds easily. Instead of changing one speed at a time, you can switch directly from 3-speed to 14-speed by continuously pressing the button, improving efficiency in the switching process.
Compared to a mechanical deraileur, the Wheeltop Electronic Deraileur allows you to switch speeds easily. Instead of changing one speed at a time, you can switch directly from 3-speed to 14-speed by continuously pressing the button, improving efficiency in the switching process.
Ride Smarter
Fine-tune and shift gears, calibrate, upgrade firmware, record ride datacheck battery level, and switch modes(leisure or race) in our app.
Record Riding
Change in 3-14 Cassettes
Multiple Languages Available
Check Battery Status
Free Setting Up/Down
Precise Setting in Every Cogs
Multiple Languages Available
Multiple Languages Available
Operations
20,000
Charge Cycles
800
Long Battery Life
The battery supports approximately 20,000 operations and charges 800 times.
Incredibly Sturdy and Lightweight
Featured with carbon fiber, the EDS TX is lightweight, extremely durable, sleek, and proficient in shock absorption, providing riders with a nimble and comfortable biking experience.
Lightweight
Incredibly Sturdy
Carbon Fiber
IP67 Waterproof
The lP67 rating enables confident cycling in rainy weather, crossing streams, and cleaning the device, with water immersion resistance of up to 1m for 30 minutes, ensuring worry-free rides.
Specifications
Hydraulic Disc
Hydraulic Disc
Hydraulic Disc
Cable
Cable
Cable

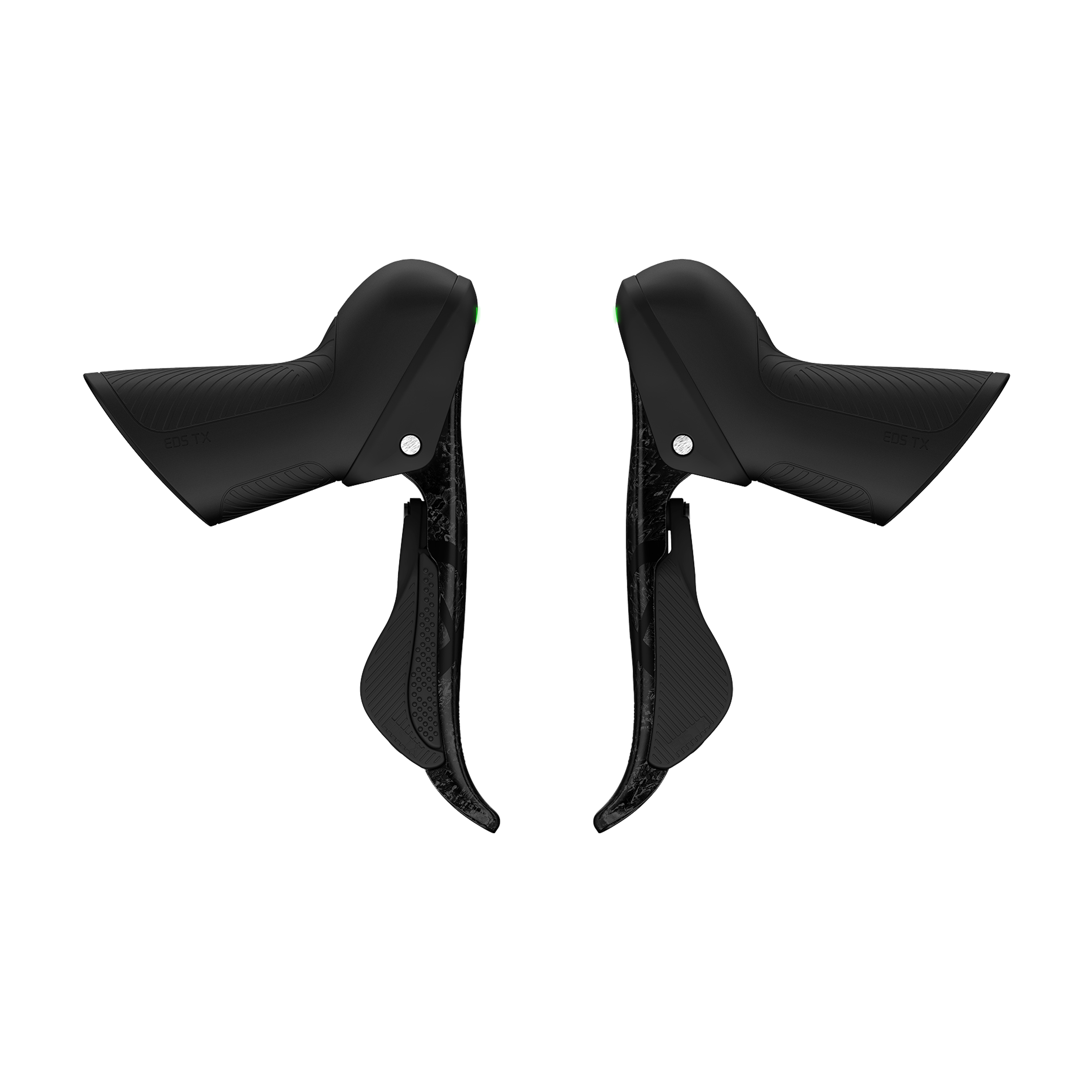

Shifters
Brake Lever Length
140mm
-
140mm
Adjustable Range
8mm
-
8mm
Battery Type
CR2032
-
CR2032
Speed Compatibility
L 1/2s    R 3-14s
-
L 1/2s    R 3-14s
Weight
L 209g    R 213g
-
L 209g    R 213g

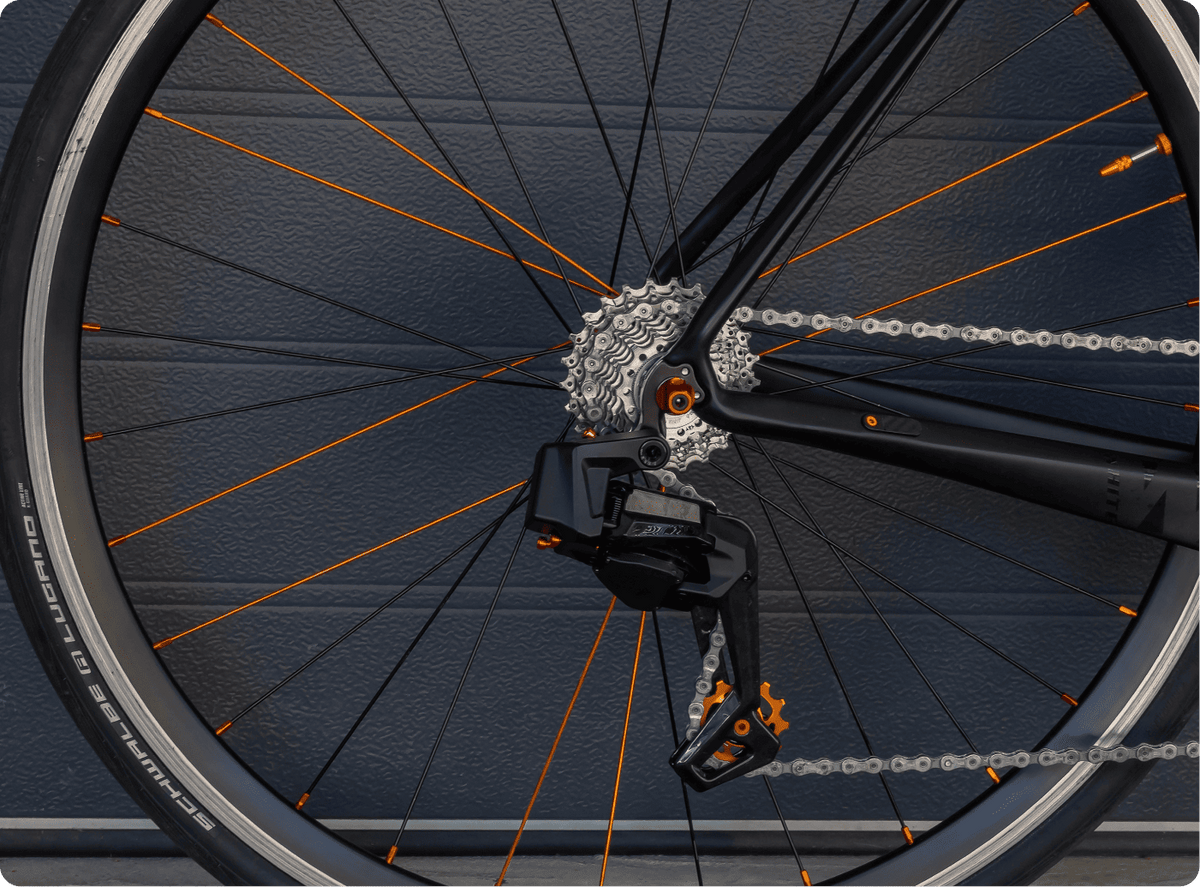

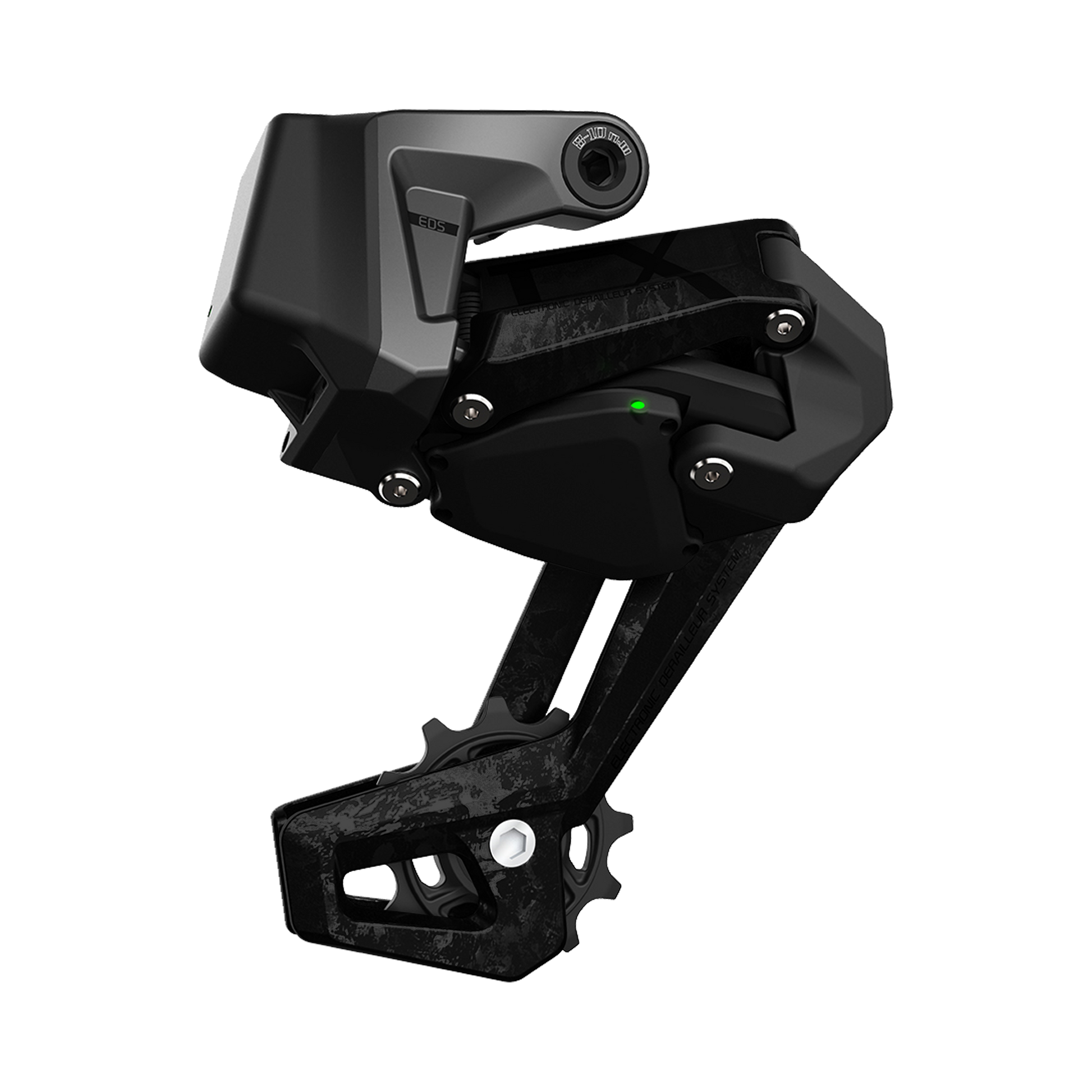

Rear Derailleur (RD)
Speed Compatibility
3-14s
-
3-14s
Minimum Sprocket
10 -11T
-
10 -11T
Maximum Sprocket
30 -36T
-
30 -36T
Total Range of Gear Change
36T
-
36T
Weight
320g
-
320g
Battery Capacity
800mAh
-
800mAh

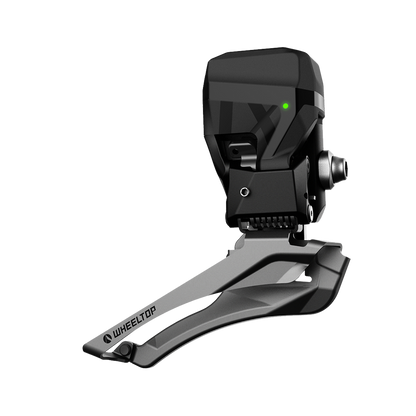

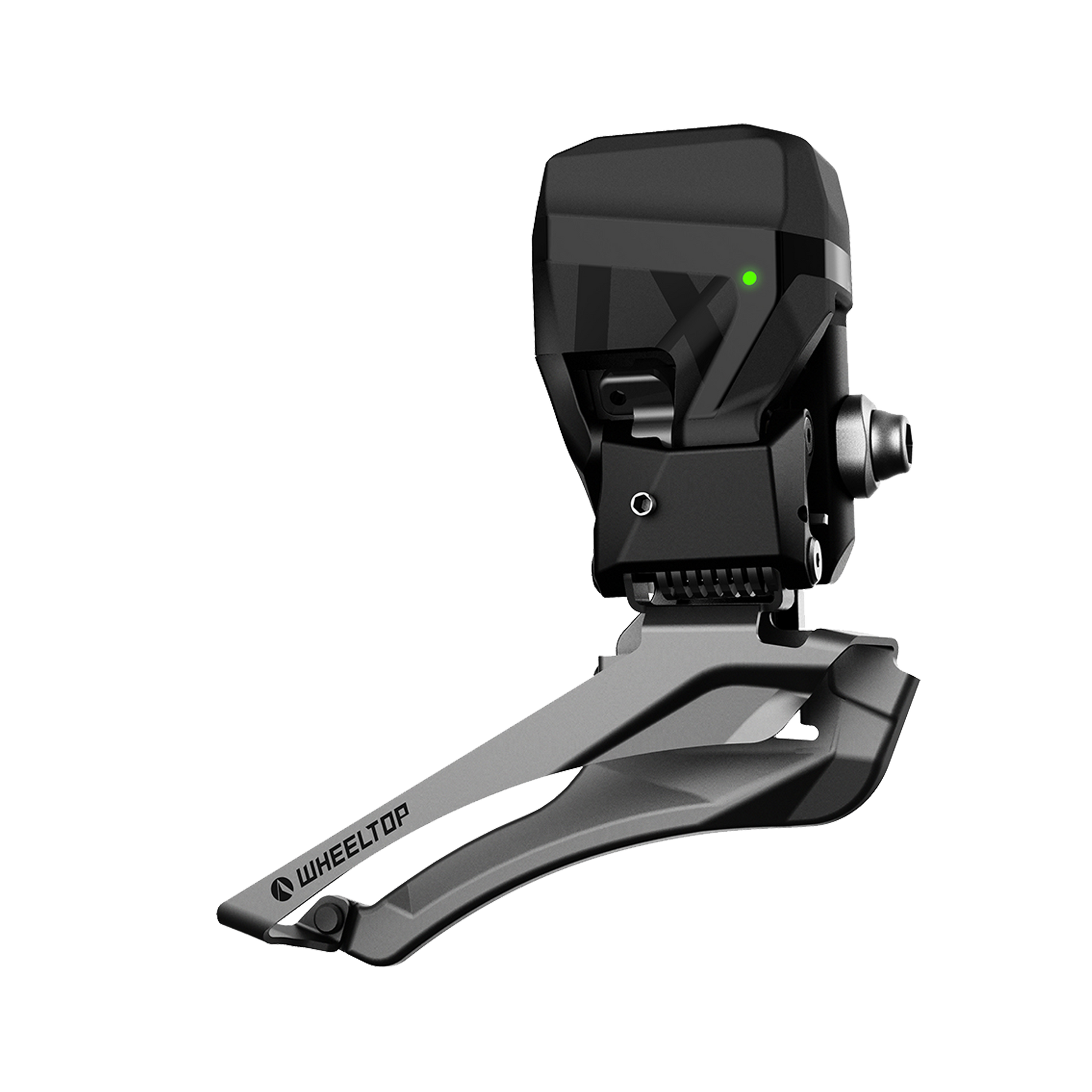

Front Derailleur (FD)
Speed Compatibility
1/2s
-
1/2s
Chainring Compatibility
53T
-
53T
Total Range of Gear Change
16T
-
16T
Weight
187g
-
187g
Angle of Chain
61°-66°
-
61°-66°
Installation Type
Band-On/Braze-On
-
Band-On/Braze-On
Battery Capacity
500mAh
-
500mAh

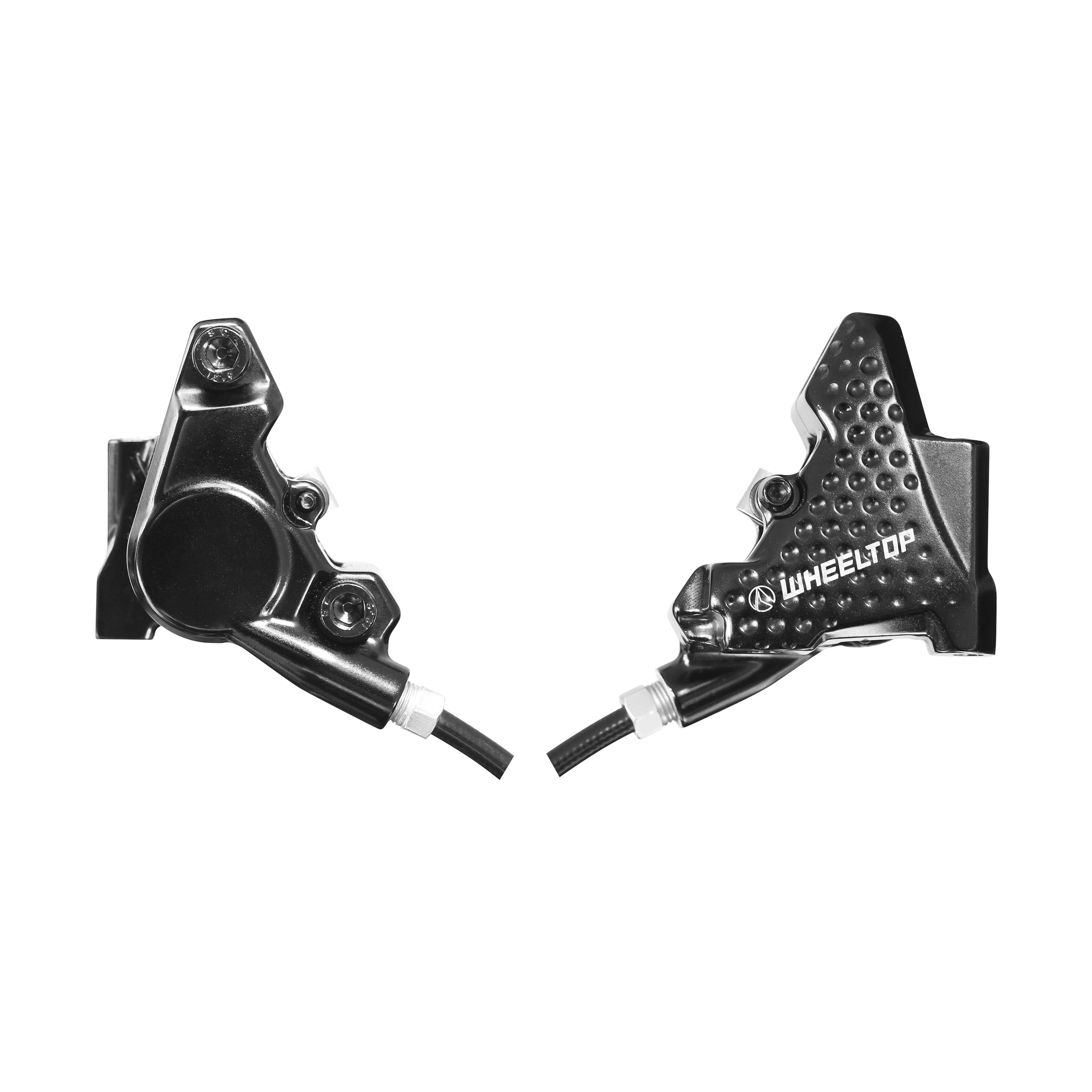

Hydraulic Disc Brake System
Brake Fluid
MINERAL OIL
-
-
Braking
Bilateral Braking
-
Brake Disc Compatibility
140mm/160mm
-
Weight
133g(Single)
-
Brake Pads Type
Compatible with Shimano L04C, LO5A, LO4A
-
Oil Hoses Length
F: 900mm  R: 1550mm
-
Oil Hoses Type
BH-40/BH-59
-
1
Shifters
Brake Lever Length
140mm
Adjustable Range
8mm
Battery Type
CR2032
Speed Compatibility
L 1/2s R 3-14s
Weight
L 209g R 213g
2
Rear Derailleur (RD)
Speed Compatibility
3-14s
Minimum Sprocket
10-11T
Maximum Sprocket
30-36T
Total Range of Gear Change
36T
Weight
320g
Battery Capacity
800mAh
3
Front Derailleur (FD)
Speed Compatibility
1/2s
Chainring Compatibility
53T
Total Range of Gear Change
16T
Weight
187g
Angle of Chain
61°-66°
Installation Type
Band-On/Braze-On
Battery Capacity
500mAh
4
Hydraulic Disc Brake System
Brake Fluid
MINERAL OIL
Braking
Bilateral Braking
Brake Disc Compatibility
140mm/160mm
Weight
133g(Single)
Brake Pads Type
Compatible with L04A
Oil Hoses Length
f: 900mm R: 1550 mm
Oil Hoses Type
BH-40/BH-9061°-66°
1
Shifters
Brake Lever Length
140mm
Adjustable Range
8mm
Battery Type
CR2032
Speed Compatibility
L 1/2s R 3-14s
Weight
L 186g R 190g
2
Rear Derailleur (RD)
Speed Compatibility
3-14s
Minimum Sprocket
10-11T
Maximum Sprocket
30-36T
Total Range of Gear Change
36T
Weight
320g
Battery Capacity
800mAh
3
Front Derailleur (FD)
Speed Compatibility
1/2s
Chainring Compatibility
53T
Total Range of Gear Change
16T
Weight
187g
Angle of Chain
61°-66°
Installation Type
Band-On/Braze-On
Battery Capacity
500mAh
USER GUIDE
PDF
User Manual
Hydraulic Disc Brake Installation Video
Cable Brake Installation Video

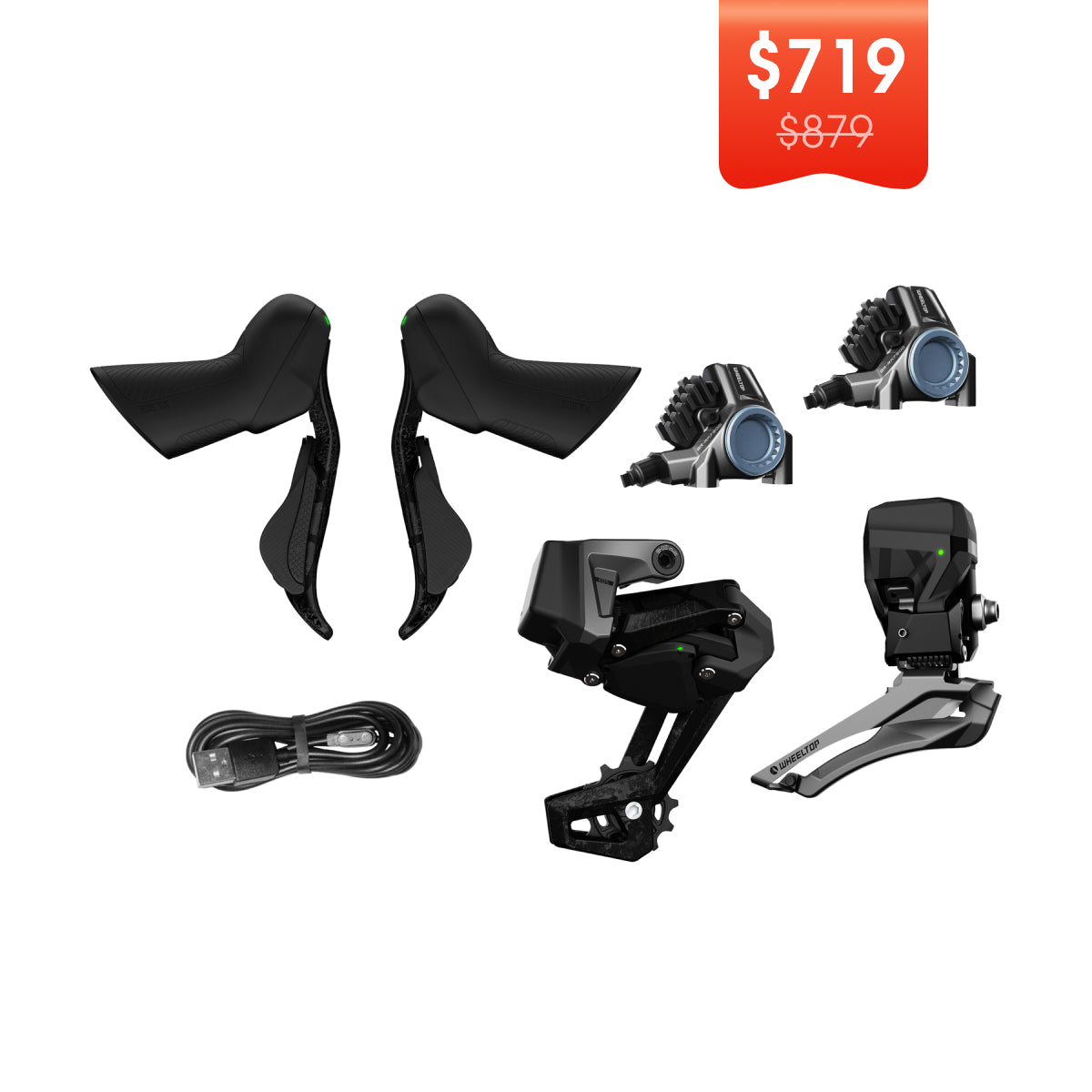

What's in the box

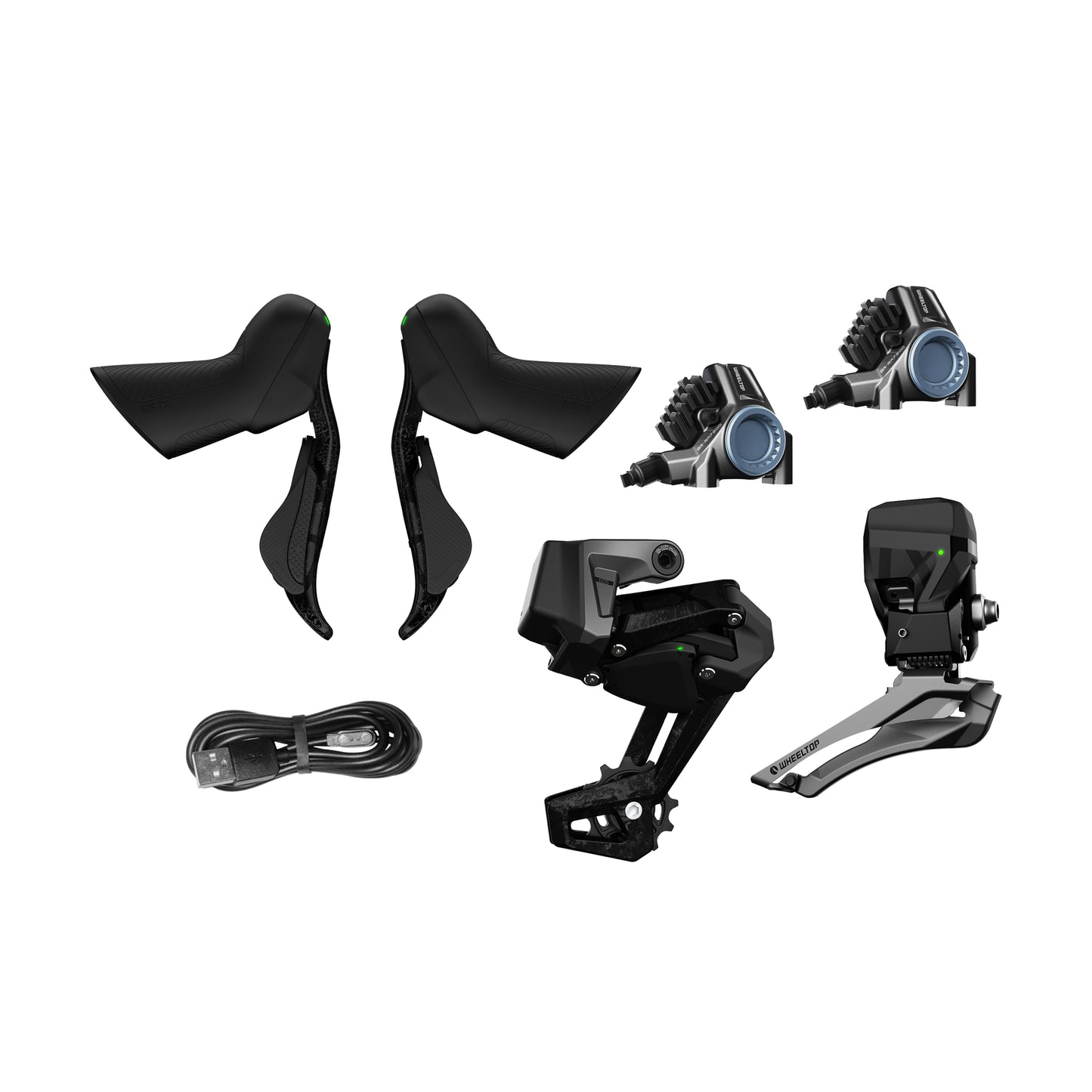

Hydraulic Disc Brake Groupsets
Carbon Shifters x2
Carbon Rear Derailleur x1
Aluminum Front Derailleur x1
Hydraulic Disc Brake Caipers x2
Hydraulic oil pipe x2

USB-C Power cable x1

USB-C to USB-A adapter x1
Instruction for Use x1
Spare part kit x1

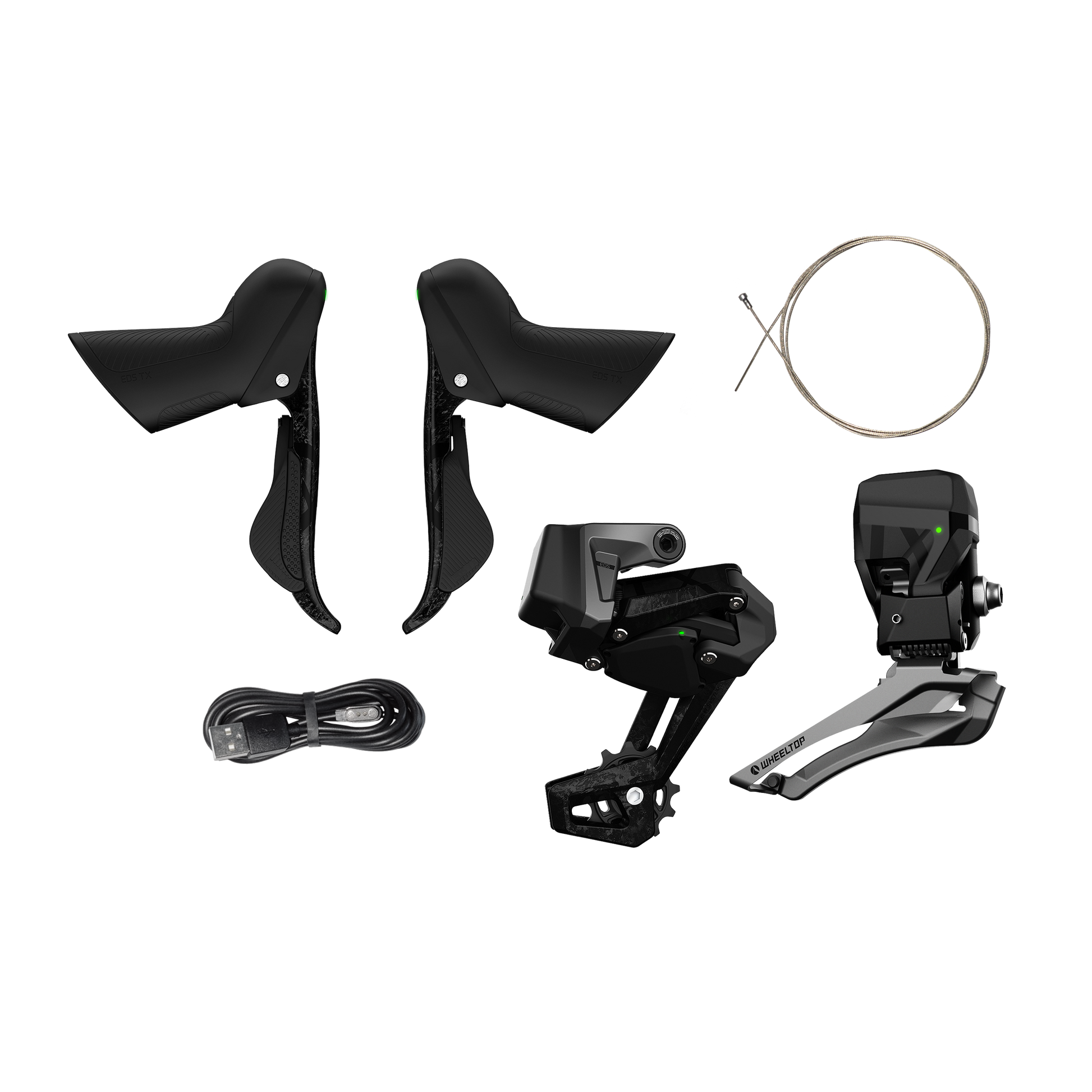

Cable Brake Groupsets
Please note that despite their similar appearance, the internal structure of the shifters for cable brakes and hydraulic disc brakes differs, and they are not interchangeable
Carbon Shifters x2
Carbon Rear Derailleur x1
Aluminum Front Derailleur x1

USB-C Power cable x1

USB-C to USB-A adapter x1
Instruction for Use x1
Brake Cables x2

FAQ

Questions about Products

What’s the compatibility of the Wheeltop EDS TX ROAD series?

  • FD: 1 - 2s
  • RD: 3 - 14s
  • FD: total value of gear change range is 16T, teeth numbers of chain wheel is 53T.
  • RD: total value of gear change range is 36T.
  • RD Minimum cassette: 10T(Minimum), 11T(Maximum).
  • RD Maximum cassette:  30T(Minimum), 36T(Maximum).

How’s the battery life?

FD: 500mAh, RD: 800mAh

800 times charge cycles.

Brake ROTOR compatibility?

Available Size: 160mm and 180mm.

Min.TH=150mm, Max.TH≤180mm.

For your safety, please replace any brake discs with a thickness <150mm.

Can I pair a road derailleur with MTB shifters?

  • Currently can't.

Can these groupsets be set as a 1x chainring system?

YES, you could disconnect the FD by following the steps below.

1.Bind the groupset to the Wheeltop APP.

2.Use the "Device shuts down" function within the APP to turn off the system.

3.Utilize a magnetic charging cable to power on the RD(without performing any actions on the FD).

4.Simultaneously press the left and right shifters and wait for the rear derailleur to exit pairing mode (indicated by the blue light no longer flashing).

5.At this point, the RD will be in a state where it is not paired to the FD.

What’s the type of braking pads?

  • Compatible with Shimano L04C, L05A, L04A, BR-RX810, IIPRO-GLYS

Can I order a groupset without the FD?

  • Currently we only sell EDS TX series in complete groupset.

What's the waterproof level?

For EDS-TX

RD: IP67, FD: IP67, Shifters: IP65.

Questions about APP

How to connect to the Wheeltop APP?

1. As the product is charged, it is set to safe mode during transportation, you need to power up the front and back toggles with the magnetic charging cable after receiving the product, after that it can be used normally.

2. Search 'Wheeltop' in Google Play or App Store to get the APP.

3. Open the APP and log in, click the "+" at the bottom of the homepage and turn on the Bluetooth of your cell phone, the APP will automatically search for nearby devices.

4. EDS TX will be displayed in "Bindable Devices", click to bind.

5. After binding, click the Bluetooth icon on the upper right corner, APP will search for the device and connect to it, then you can use the functions normally.

What are the features of the Wheeltop APP?

  1. Check the remaining battery level
  2. Code meter, riding record
  3. Shift mode - front and rear dial cassette number switching, hand shift customized buttons, front and rear dial fine tuning
  4. cassette speed setting
  5. Initial calibration of front and rear dials
  6. Equipment shutdown
  7. Firmware upgrade
  8. After-sales application
  9. Trouble List
  10. Shift mode switching - casual/race
  11. Instructions for use

Questions about Service

Do you have any distributors?

HK: 香港镇洋兄弟单车公司,CHUNGYUNG CYCLE CO.

Malaysia: Zavinci Cycle Hub (M) Sdn Bhd

Thailand: Nattapong Bike

Canada: EZ Bike, DP Motor

France: MANUFACTURE FRANCISE DU CYCLE
+33 02 40 78 23 08
commercial.pna@mfdc.fr

Email service@wheeltop.com for more info.

How can I get after-sale service if I didn’t purchase from the official website.

If you purchase from other channels, the responsibility for the warranty and after-sales service lies with the respective dealers/sellers.
